POE170VF 15W ONVIF IP Horn Speaker

Name: POE170VF 15W ONVIF IP Horn Speaker
Brand: Guangzhou DSPPA Audio Co., Ltd.

Features

● 10/100M adaptive, support DHCP/static IP.
● Support standard ONVIF protocol.
● Can play background music, emergency paging, alarm signals, etc. from the host system.
● Adopt high-quality ABS plastic and high-dynamic range speaker unit for clearer and brighter sound.
● Equipped with a mounting bracket for easy installation.
● All-weather design, suitable for both indoors and outdoors, applicable to different occasions.
● Can adjust short circuit detection mode.
● Can download songs and support formats such as MP3 and WAV.
● Can adjust the priority order of the three sources, such as ONVIF, network, and short-circuit input.

Contact now Leave message

Introduction
Specification

This device is an ONVIF horn speaker that supports public address and intercom network system. With the support of the international standard ONVIF protocol, it can accept broadcasts and calls from LAN, and can be quickly deployed to the desired place with only one network cable. Through the web interface, you can upload and download songs for direct playback. It can be independently bound to a camera and triggered to play music via the camera’s API. The horn speaker offers a wide sound diffusion angle, is easy to install, and delivers excellent reproduction of both speech and music.

Model		POE170VF
Amplifier Output	Rated Power (RMS)	15W 8Ω
	S/N Ratio	≧75dB
	Frequency Response	80Hz-16KHz
Speaker	Drive Unit	2.5"
	Sensitivity	102dB±2dB
	Maximum Sound Pressure Level	115dB±2dB
	Frequency Response	350Hz-6.3KHz
Power Supply		PoE+ (IEEE 802.3at) / DC24V 2A (Standby)
Others	Network Interface	RJ45 (10/100M)
	Power Connector	24V/2A
	Outer Package Dimensions (H×W×D mm)	630510335mm (4pcs)
	Machine Dimensions (H×W×D mm)	285205291mm
	Gross Weight	10.8kg(4pcs)
	Net Weight	1.9 kg

PREV: DSP6114E DSP6116E PoE Outdoor Waterproof Column Speaker

NEXT: No information

Relate Products

POE6310 IP Network Terminal with Built-in AmplifierNovember 14, 2018POE6310 network display terminal is a networked all-digital analog-digital conversion signal processor based on TCP/IP transmission protocol, which adopts the dual network design, and can be coupled a...view
POE6401 IP Network Terminal with Built-in Amplifier (Customized)November 30, 2016POE6401 Network PA system terminal is a POE powered network full digital signal processor based on TCP/IP protocol. With dual network interface design, it can be connect to anywhere the network reaches. Under intelligent control of the system center, thisview

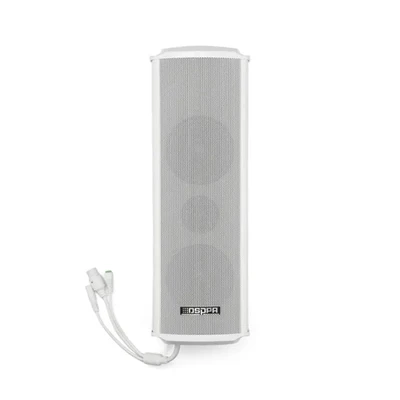

DSP6114E DSP6116E PoE Outdoor Waterproof Column SpeakerJanuary 20, 2024The product DSP6114E / DSP6116E is an outdoor waterproof column speaker supporting POE and POE+ standards. It can automatically configure the output power according to the switch, and can also supply ...view

«
