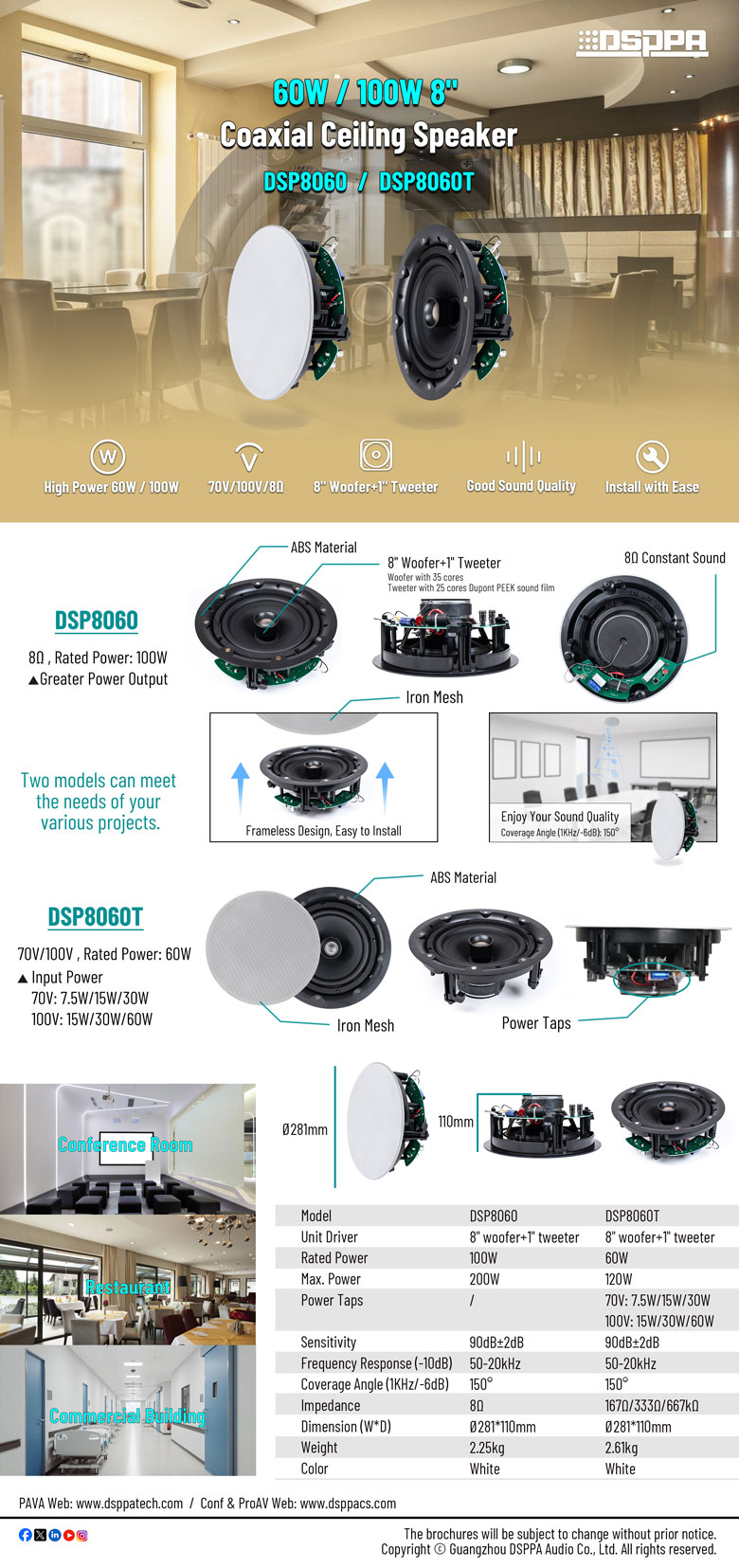

DSP8060 8 ohms 100W Ceiling Speaker

Features

● 8" woofer+1" tweeter
● 8Ω , Rated Power:100W
● Freq. Resp.:50Hz-20kHz
● Sensitivity 90±2dB
● Cutout size:Ø250mm
● Product size:Φ281x110mm
● Woofer with 35 cores
● Tweeter with 25 cores Dupont PEEK sound film
● ABS material
● Weight: 2.25kg

  • Introduction
  • Specification

The DSP8060 is a 100W ceiling speaker. It has excellent sound quality, simple structure, simple and convenient power setting, easy to install and other features. Suitable for indoor environment, can play excellent background music and voice broadcasts.


Model

DSP8060

Unit Driver

8" woofer+1" tweeter

Rated Power

100W

Max. Power

200W

Sensitivity

90dB±2dB

Frequency Response (-10dB)

50-20kHz

Coverage Angle (1KHz/-6dB)

150°

Impedance

Dimension (W*D)

Ø281*110mm

Weight

2.25kg

Color

White
